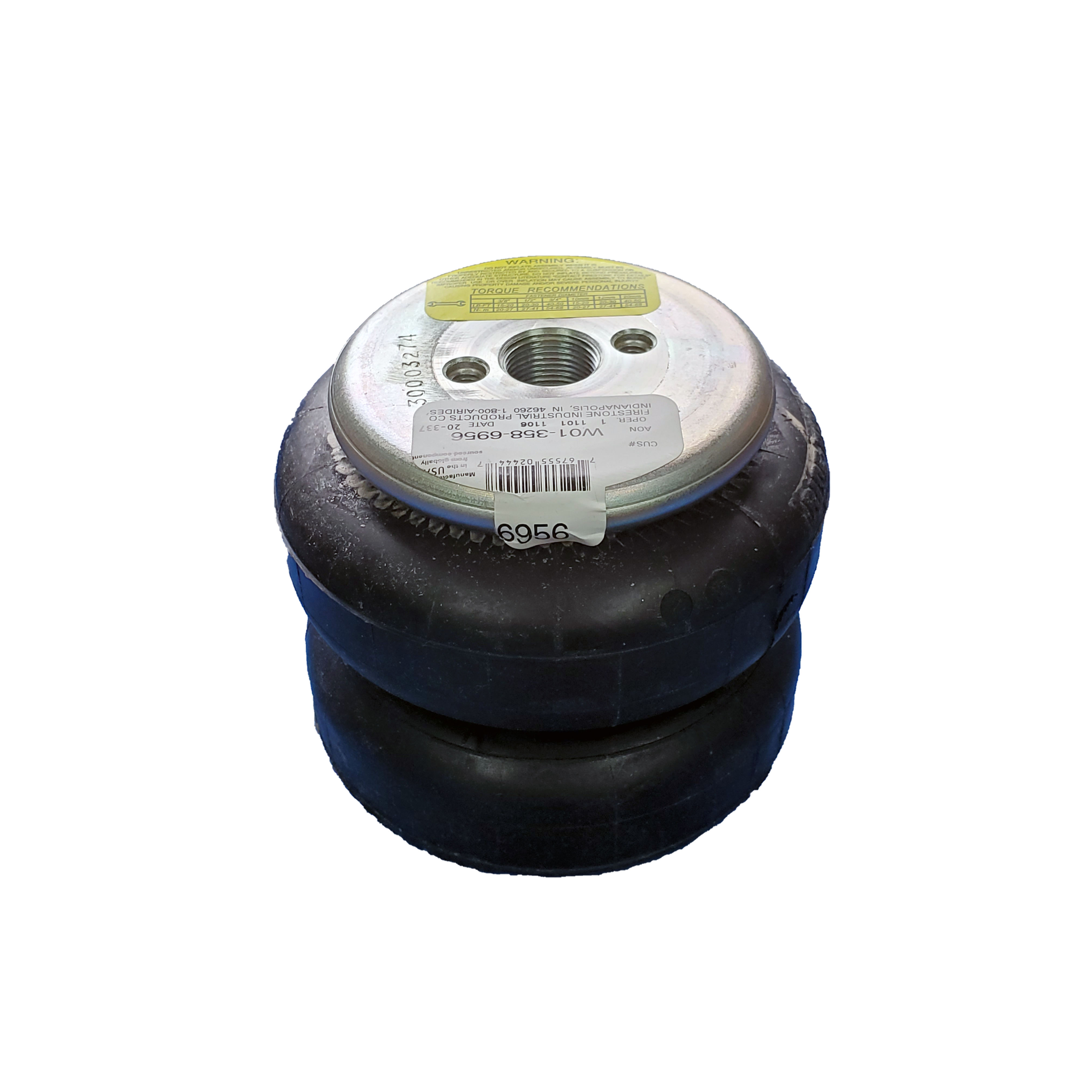

W01-358-6956

W01-358-6956

*PLEASE CONTACT US FOR PRICING*

info@boifor.com - (450) 467-3588



Manufacturer : Firestone Industrial Products

267C1.5 Style (Formerly 255-1.5) Airspring, Type 1 Bead Plate, (2) 3/8-16 Blind Nuts On 1.75" Centers, 3/4" NPT Centered Port

  • Specifications

    AIRSTROKE ACTUATOR

    Maximum Diameter @ 100 PSIG (inches)

    6.5

    Maximum Height (inches)

    7

    Maximum Stroke (inches)

    4

    Minimum Usable Height (inches)

    3

    Force @ 80PSI at Stroke of 1 Inch (pounds)

    1612

    Force @ 80PSI at Stroke of 3 Inch (pounds)

    1194

    Force @ 80PSI at Stroke of Maximum Stroke (pounds)

    921

    Material

    2-Ply Standard Cord

    END CLOSURE DETAILS

    Bead plate Type

    1

    Blind Nut Centers (inches)

    1.75

    AIRMOUNT ISOLATOR

    Design Height

    6

    Load (at Design Height) at: 40 psig (pounds)

    566

    Load (at Design Height) at: 60 psig (pounds)

    871

    Load (at Design Height) at: 80 psig (pounds)

    1194

    Natural Frequency (@80 psig) (cpm)

    129

    % of Isolation at Forced Frequency 400 CPM

    87.6

    % of Isolation at Forced Frequency 800 CPM

    97.2

    % of Isolation at Forced Frequency 1500 CPM

    99.2

    Manufacturer Part Number: W013586956
