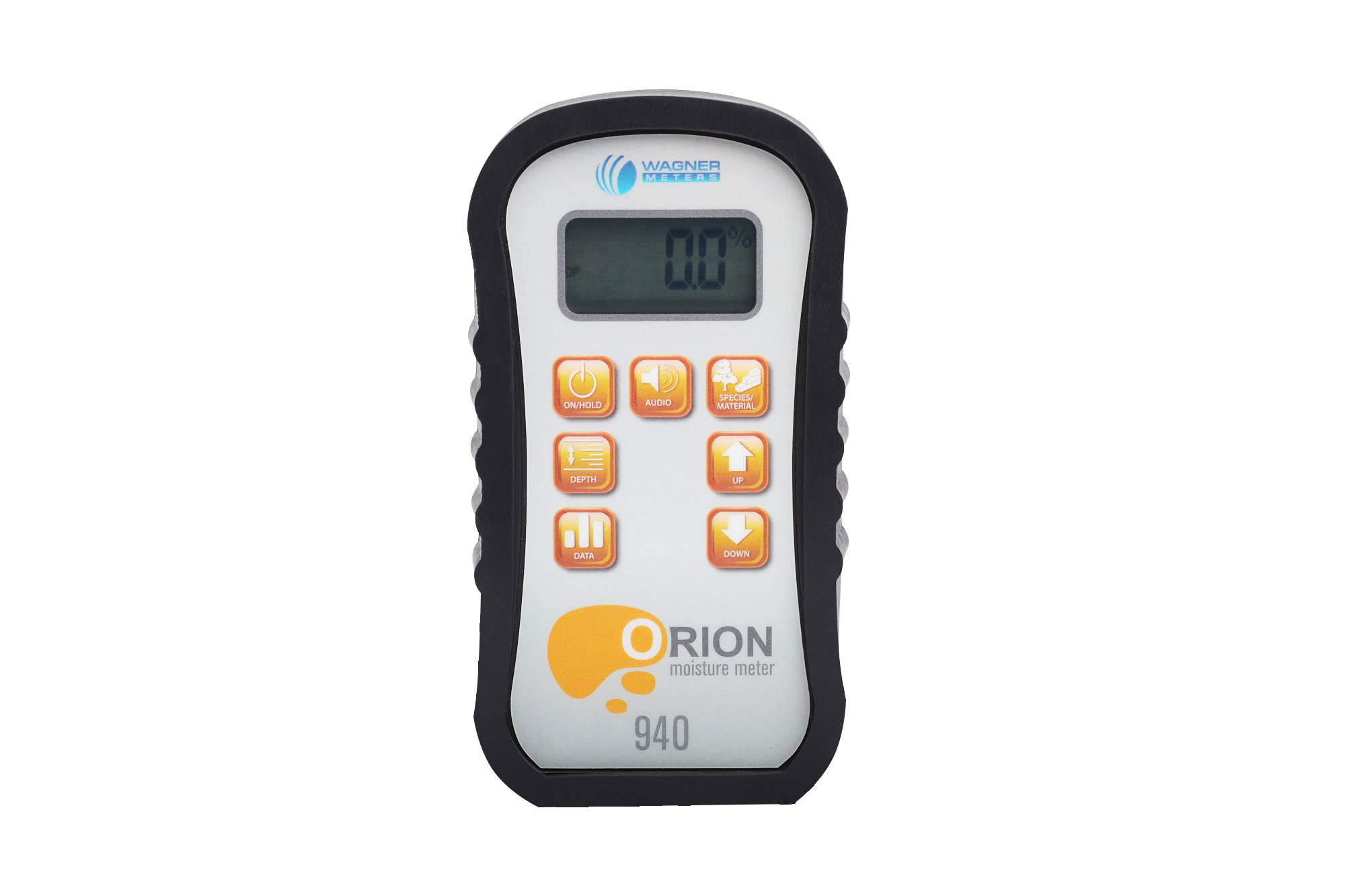

Orion® 940 (replaced the MMI-1100)

Orion® 940 (replaced the MMI-1100)

C$693.06Price

The Orion 940 Data Collection Pinless Wood Moisture Meter was designed ideally for professional quality control managers who need superior accuracy, data collection, versatility and ruggedness in their critical moisture measurement instruments.

With certification
  • Description

    PRODUCT DESCRIPTION



    • Data Collection
    • Dual Depth Measurements
    • IntelliSense™ Technology
    • Fast Selection Species Settings
    • Non-Damaging Pinless Sensor
    • Virtually Unaffected by Temperature
    • On-Site Calibration
    • Relative Moisture Measurement ModePress to Hold Readings
    • Programmable Alarm7-Year Warranty
    • Ruggedized Protective Rubber Boot and Hard Case

    The Orion® line of wood moisture meters continues Wagner’s 50-plus year tradition of providing accurate, dependable non-damaging pinless moisture measurement technology, measuring IN the wood not just ON the wood, and backed by Wagner’s industry-leading 7-year warranty.

    The Orion 940 Data Collection Pinless Wood Moisture Meter was designed ideally for professional quality control managers who need superior accuracy, data collection, versatility and ruggedness in their critical moisture measurement instruments.



    The Orion 940 has all the common features of the 930 plus it adds:



    Data Collection


    The Orion 940 can collect data in two modes…either manual or automatic with viewable moisture stats. The Orion 940 can hold data storage of up to 100 readings and includes high-low-average analysis.



    Each Orion 940 Data Collection Pinless Wood Moisture Meter comes with the following:



    • 1 x Orion 940 Data Collection Pinless Wood Moisture Meter
    • 1 x Paired On-Demand Calibrator
    • 1 x Rubber Protective Boot
    • 1 x Foam-lined ABS Plastic Carrying Case
    • 1 x 9V Battery
  • Technical Specifications

    Dimensions with Boot:

    • Length: 5.75 inches (146mm)
    • Width: 3.0 inches (76mm)
    • Thickness: 1.0 inches (25mm)



    Weight with Boot:

    • 7.2 oz. (204g)



    Scanning Area:

    • 2.0 inches (50mm) x 2.5 inches (63mm)



    Power:

    • 9-volt battery (Wagner recommends using non-rechargeable Alkaline or Lithium or rechargeable NiMH batteries)



    Auto Power Shut-Down:

    • 60 seconds



    Measurement Ranges:

    • MC for wood: 4.0% to 32.0% (range will vary slightly depending on species setting)
    • Relative Measurement Scale: 0-100



    Orion 940 Measurement Ranges:

    • Ambient Temperature: 32˚F to +110˚F (0˚C to +43˚C)
    • Ambient Relative Humidity: 0% to 100%
    • Equilibrium Moisture Content Measurement Range: 0-40.7%
    • Dew Point: -85˚F to +110˚F (-65˚C to +43˚C)
    • Absolute Humidity: 0 to 431.1 lb/ft (0 to 61.6 kg/m)



    Specific Gravity Range for Wood Species:

    • 0.20-1.0 SG



    Storage Temperature and Humidity:

    • +50˚F to +90˚F (+10˚C to +32˚C), Maximum relative humidity of 95%, Non-condensing



    Operating Temperature Range:

    • +32˚F to +110˚F (+0˚C to +43˚C)
